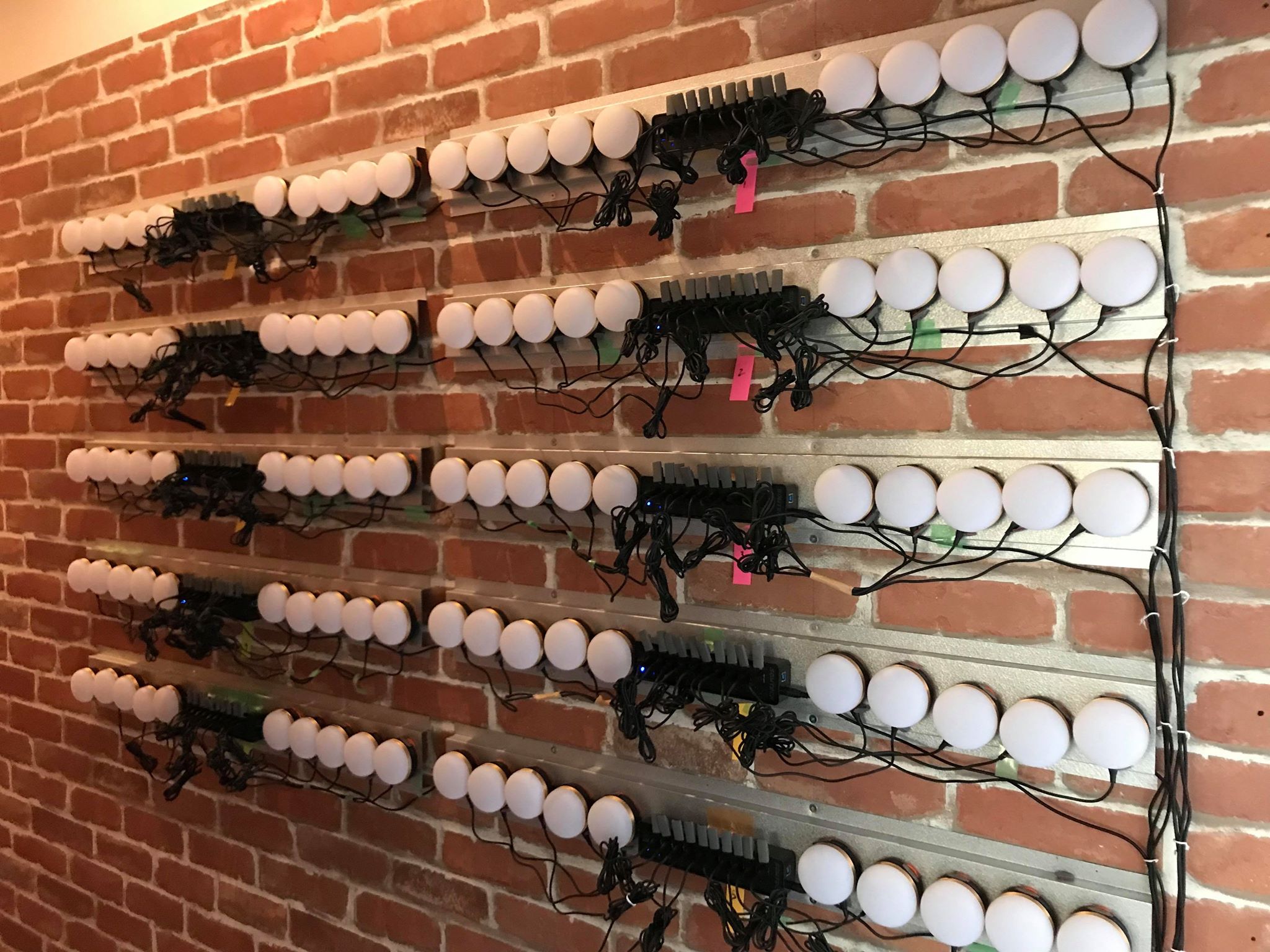

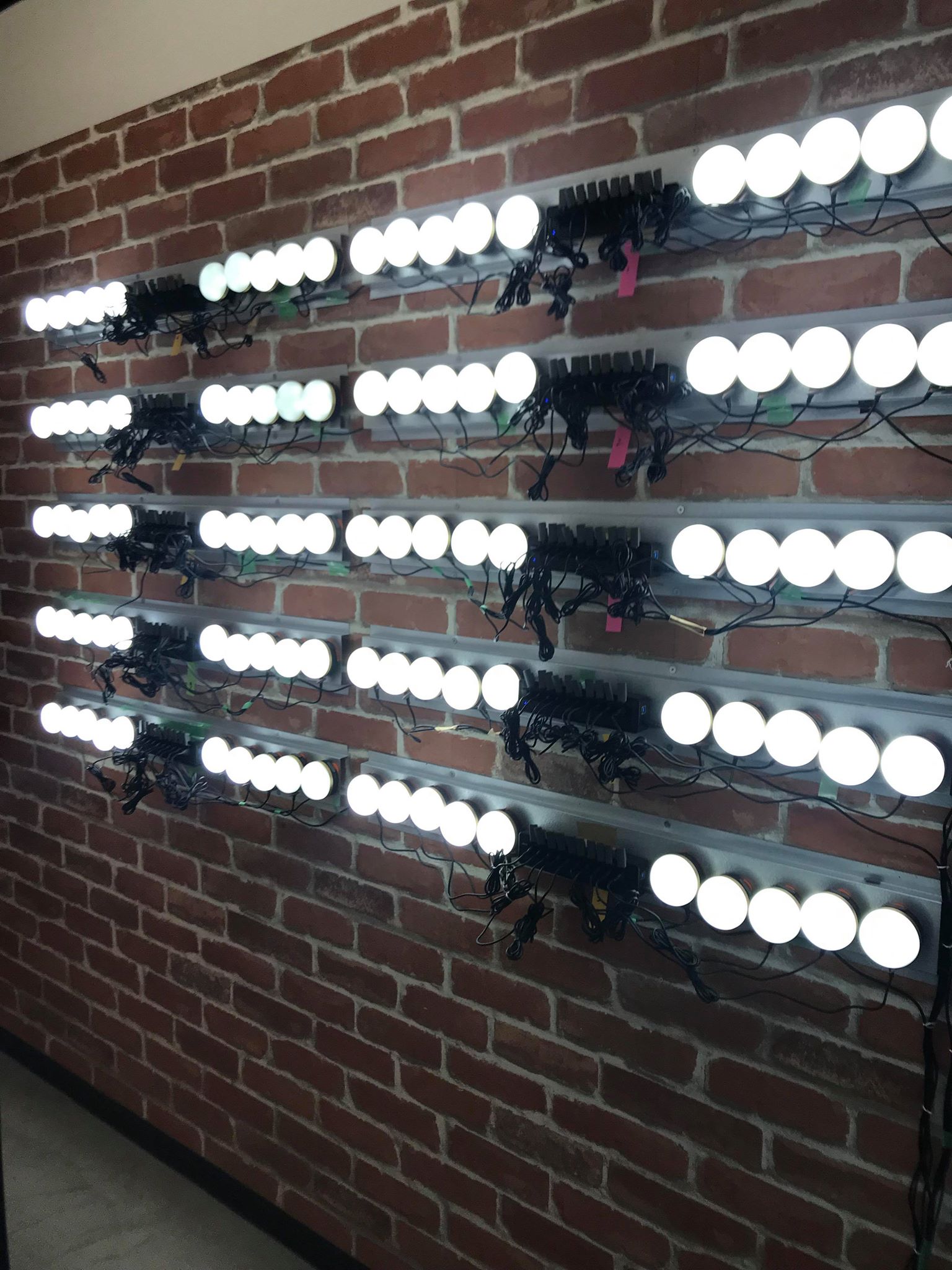

LED Lantern Charging System

Kens.Co; Ltd has developed a new LED Lantern charging system which is consisting of lithium-ion batteries with 100 pcs of the LED lantern and very light solar panels as well. This is a very simple installation process where it will be used in school for charging at day time and after school students can bring the LED lantern to their house and use it to study at night. The next morning, students will bring it to the school and charge in the daytime as well. School management can charge a small rent to the students per month or day to cover up their investment costs.

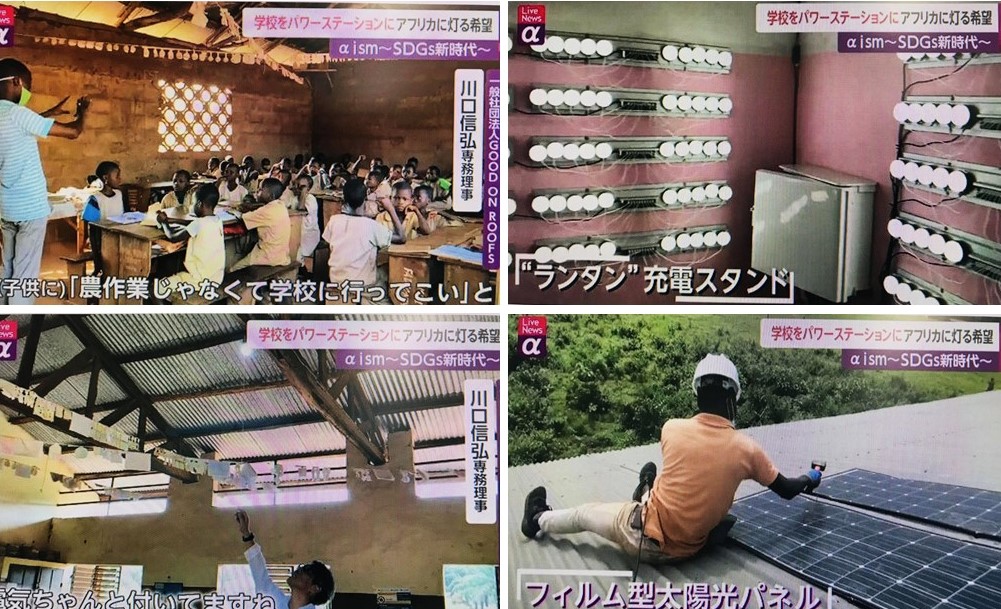

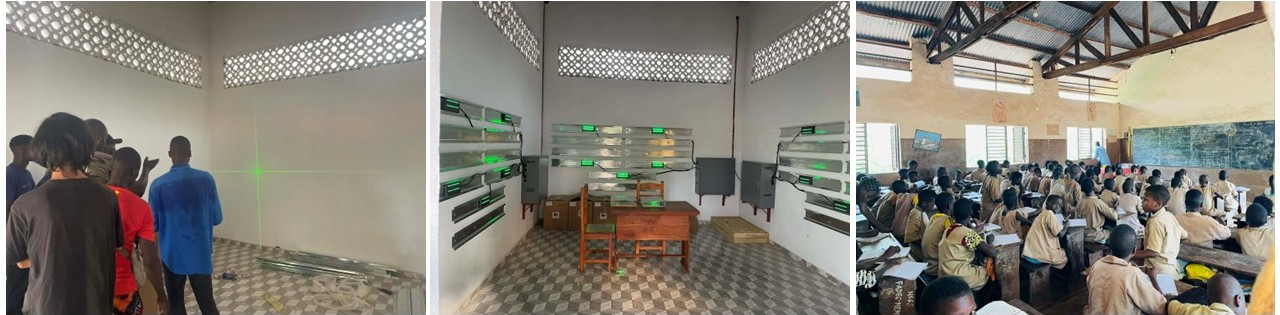

Click here to read articles about  Installed at Primary School in Benin 2021

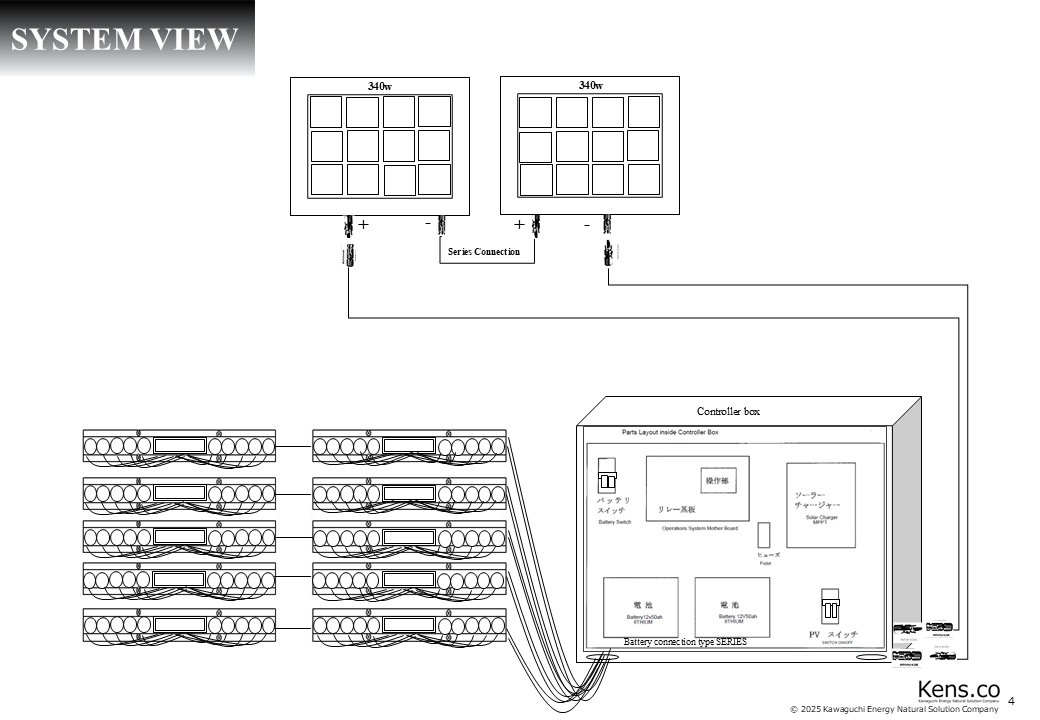

 LED Lantern Charging System :

LED lantern Charging system

Description Capacity Dimension Weight Vmp Qty
Monocrystalline solar 215w 1979*689*5.6mm 4.8kgs 25.7V 3pcs
Lithium-ion Battery 487.5Wh Inside controller box 4kg 15V 1pcs
LED Lantern 1800mAh L75H45mm 85g DC5V -1Amp 100pcs
Controller BoxFuse, circuit breaker, controller, terminal L45W12H50cm 5kg 1pcs
USB DC cable 3M 10pcs
Steel Frame, Case for USB hub 1 steel frame for 10 pcs of LED lantern W100 L13.5 cm 1kg 10pcs
USB Hub 3.0 10 ports 10pcs

Installation Proccess :



                                                             For More Details Click the PDF
